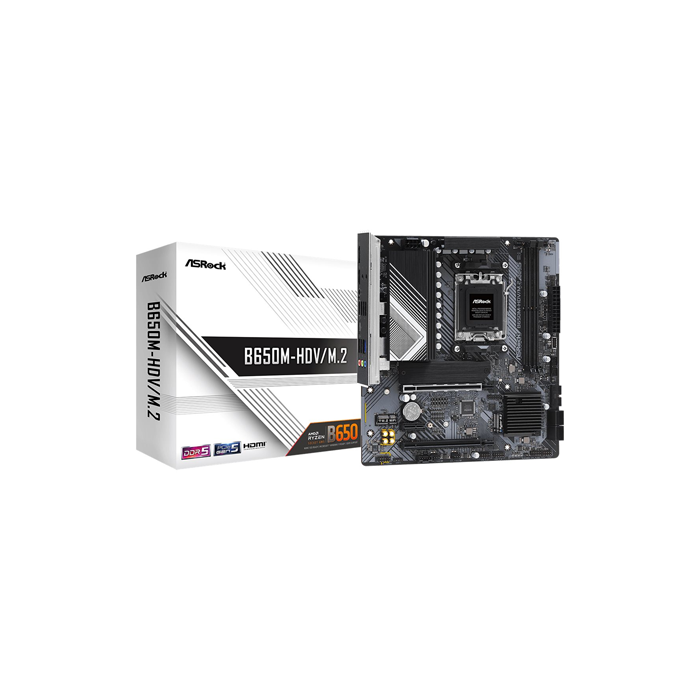

ASRock AM5 B650M-HDV/M.2 uATX
SKU
2855
| Manufacturer: | ASRock |
|---|---|
| Product Name: | ASRock AM5 B650M-HDV/M.2 uATX |
| Model Number: | 90-MXBLA0-A0UAYZ |
| SKU: | 2855 |
| EAN: | 4710483942693 |
| Warranty: | 2 Years |
| BIOS: | 256Mb AMI UEFI Legal BIOS with GUI support |
|---|---|
| Chipset: | AMD B650 |
| CPU Support: | AMD Socket AM5 Ryzen™ 7000 Series |
| Processor Socket: | LGA 1200 |
| RAM technology: | Dual Channel DDR5 |
| RAM Slots: | 2 |
| Max. Memory Support: | 96 Gb |
| Graphics Output: | HDMI, DisplayPort |
| Storage Controller(s): | SATA3 6.0 Gb/s, M.2 |
| On-Board LAN: | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG |
| On-Board Audio: | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| On-Board Video: | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) |
| Back Panel I/O Ports: | Antenna Mounting Points, HDMI, DisplayPort 1.4, USB 3.2, USB 2.0, RJ-45 LAN Port, BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Form Factor: | µATX |
| Package Type: | Retail |
|---|
