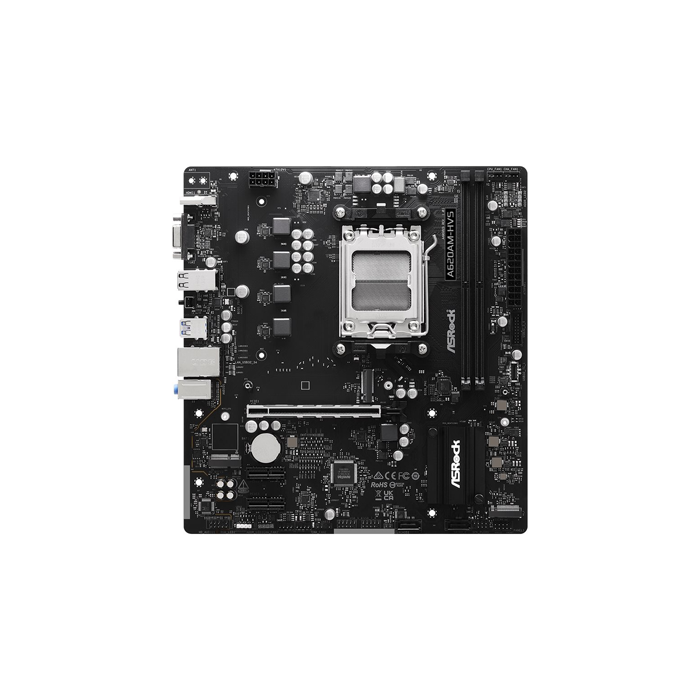

Asrock AM5 A620AM-HVS

General

General
Manufacturer:	ASRock
Product Name:	Asrock AM5 A620AM-HVS
Model Number:	90-MXBSR0-A0UAYZ
SKU:	6308
EAN:	4711581490802
Warranty:	2 Years

Details

Dr. MOS

Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

High Speed M.2 Solution

Hyper M.2 Gen4 x4 Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design

PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Fan-Tastic Tuning

ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

EZ Setting

Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Post Status Checker

Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Product Specifications

Specifications
BIOS:	UEFI AMI
Chipset:	AMD A620A
CPU Support:	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor Socket:	AM5
RAM technology:	DDR5-SDRAM
RAM Slots:	2 x DIMM
Max. Memory Support:	128 GB
Expansion Slots:	1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Graphics Output:	1x HDMI
Storage Controller(s):	PCI Express 3.0, PCI Express 4.0, SATA III; RAID 0, 1, 10
On-Board LAN:	Fast Ethernet, Gigabit Ethernet
On-Board Audio:	Realtek ALC897, 7.1 channels
On-Board Video:	Integrated AMD RDNA graphics
Back Panel I/O Ports:	2 x Antenna, 1 x D-Sub, 1 x HDMI, 4 x USB 3.2, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor:	mATX
Product Width:	229 mm
Product Length:	244 mm
Description:	Dr. MOS Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability. 2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. High Speed M.2 Solution Hyper M.2 Gen4 x4 Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Intelligent Cooling Design PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation. Fan-Tastic Tuning ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements. Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. POLYCHROME RGB This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot. EZ Setting Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required. Post Status Checker Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Package information

Package information
Package Type:	Retail
