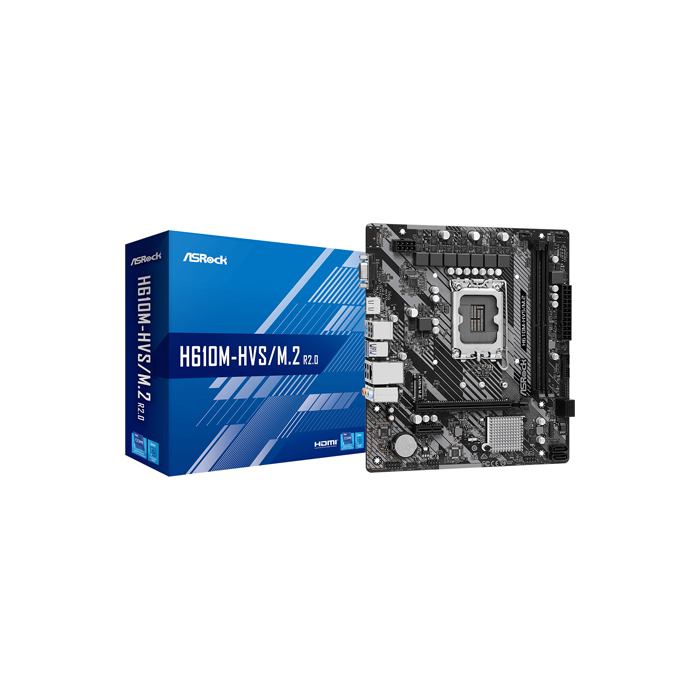

ASRock LGA 1700 H610M-HVS/M.2.0 uATX

General

General
Manufacturer:	ASRock
Product Name:	ASRock LGA 1700 H610M-HVS/M.2.0 uATX
Model Number:	90-MXBJJ0-A0UAYZ
SKU:	8596
EAN:	4710483939914
Warranty:	2 Years

Details

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Product Specifications

Specifications
BIOS:	UEFI AMI
Chipset:	Intel H610
CPU Support:	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Processor Socket:	LGA 1700
Max. CPU Support:	Intel® Turbo Boost Max 3.0 Technology
RAM technology:	DDR4-SDRAM
RAM Slots:	2 x DIMM
Max. Memory Support:	64 GB
Expansion Slots:	1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Graphics Output:	1x HDMI
Storage Controller(s):	M.2, SATA III
On-Board LAN:	Gigabit Ethernet
On-Board Audio:	Realtek ALC897, 7.1 channels
Form Factor:	mATX
Product Width:	188 mm
Product Length:	223 mm
Description:	Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Premium Power Choke Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
