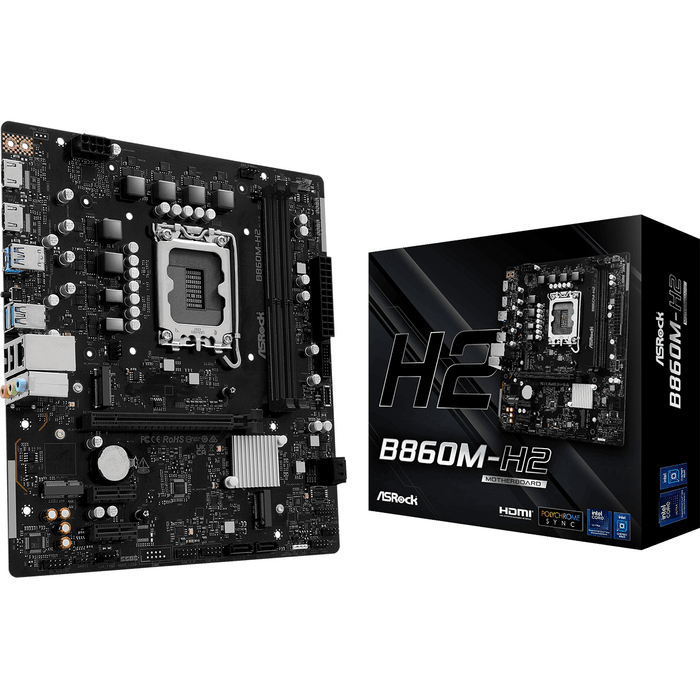

ASRock LGA1851 B860M-H2

General

General
Manufacturer:	ASRock
Product Name:	ASRock LGA1851 B860M-H2
Model Number:	90-MXBS00-A0UAYZ
SKU:	5368
EAN:	4711581490437
Warranty:	2 Years

Details

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

USB 3.2 Gen2x2 20Gbps Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual HDMI Outputs

Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1 : Install Auto Driver Installer step2 : Update drivers needed step3 : Done!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Product Specifications

Specifications
BIOS:	UEFI AMI
Chipset:	Intel B860
CPU Support:	Intel Core Ultra (Series 2)
Processor Socket:	LGA 1851
RAM technology:	DDR5-SDRAM
RAM Slots:	2 x DIMM
Max. Memory Support:	128 GB
Expansion Slots:	1x PCIe 4.0 x16, 2x PCIe 4.0 x1
Graphics Output:	2x HDMI
Storage Controller(s):	M.2, SATA III; RAID 0, 1, 5, 10
On-Board LAN:	Gigabit Ethernet
Wireless Technology:	Realtek Gigabit LAN
On-Board Audio:	Realtek ALC897, 7.1 channels
On-Board Video:	Intel® Xe LPG Graphics Architecture
Back Panel I/O Ports:	2 x Antenna Mounting Points, 2 x HDMI, 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor:	mATX
Product Width:	211 mm
Product Length:	244 mm
Description:	PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. USB 3.2 Gen2x2 20Gbps Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Dual HDMI Outputs Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience. POLYCHROME RGB This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1 : Install Auto Driver Installer step2 : Update drivers needed step3 : Done! BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
