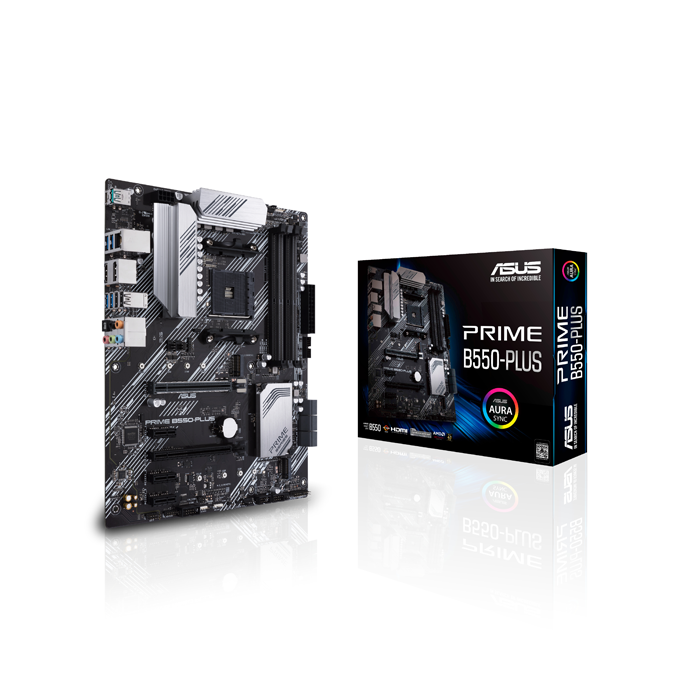

ASUS Prime B550-PLUS

General

General
Manufacturer:	ASUS
Product Name:	ASUS Prime B550-PLUS
Model Number:	90MB14U0-M0EAY0
SKU:	3353
EAN:	4718017782340
UPC:	192876782347
Warranty:	2 Years

Details

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Cool to the Core

Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pads

Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Build on a Solid Foundation

Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

PCIe 4.0 M.2

(up to 64 Gbps) Achieve Speed With Onboard M.2 PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

Little Things Make a Big Difference

Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Product Specifications

Specifications
BIOS:	UEFI AMI
Chipset:	AMD B550
CPU Support:	AMD Ryzen 3000 Series
Processor Socket:	AM4
RAM technology:	DDR4-SDRAM
RAM Slots:	4 x DIMM
Max. Memory Support:	128 GB
Expansion Slots:	1x PCIe 4.0 x16
Graphics Output:	1x HDMI, 1x DisplayPort
Storage Controller(s):	M.2, SATA; RAID 0, 1, 10
On-Board LAN:	Gigabit Ethernet
On-Board Audio:	7.1 channels
Back Panel I/O Ports:	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
Form Factor:	ATX
Product Net Weight:	1 kg
Description:	ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Cool to the Core Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM Heatsink and Thermal Pads Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Build on a Solid Foundation Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. PCIe 4.0 M.2 (up to 64 Gbps) Achieve Speed With Onboard M.2 PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. Little Things Make a Big Difference Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
