Tier One Distribution - Your global partner since 1999
| Manufacturer: | ASUS |
|---|---|

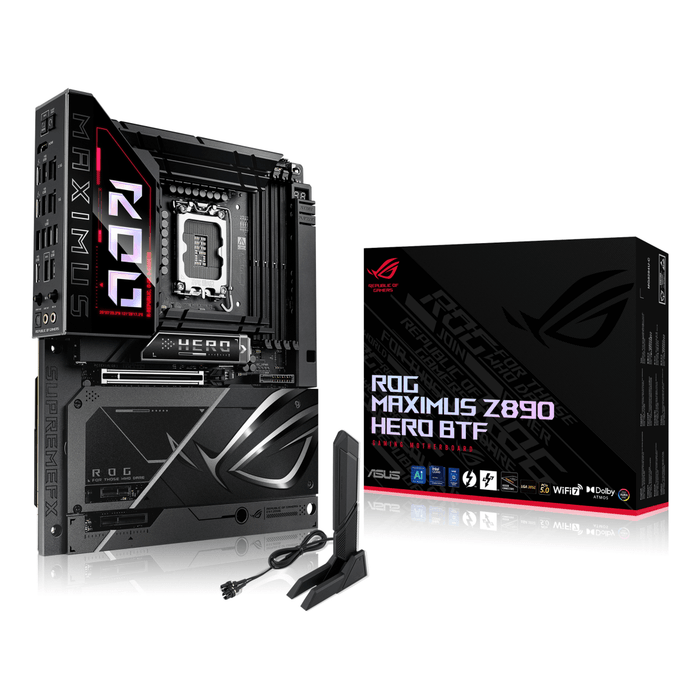

| Product Name: | ASUS ROG MAXIMUS Z890 HERO BTF |
| Model Number: | 90MB1KG0-M0EAY0 |
| SKU: | 8407 |
| EAN: | 4711387847602 |
| UPC: | 197105847606 |
| Warranty: | 3-year limited warranty direct with manufacturer |
Intel® Z890 LGA 1851 ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management, Advanced AI PC-ready, 22+1+2+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II.
| BIOS: | UEFI AMI |
|---|---|
| Chipset: | Intel Z890 |
| CPU Support: | Intel Core Ultra (Series 2) |
| Processor Socket: | LGA 1851 |
| Max. CPU Support: | 1 |
| RAM technology: | DDR5-SDRAM |
| RAM Slots: | 4 x DIMM |
| Max. Memory Support: | 256 GB |
| Expansion Slots: | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x1 |
| Graphics Output: | 1x HDMI |
| Storage Controller(s): | M.2, SATA III; RAID 0, 1, 5, 10 |
| On-Board LAN: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Wireless Technology: | Wi-Fi 7 (802.11be) |
| Bluetooth: | Bluetooth 5.4 |
| On-Board Audio: | Realtek ALC4082, 7.1 channels |
| Back Panel I/O Ports: | Thunderbolt™ 4 ,USB 10Gbps, USB 5Gbps, HDMI, 2.5 Gb ethernet, 5 Gb ethernet, Audio jacks, Optical S/PDIF |
| Form Factor: | ATX |
| Product Width: | 244 mm |
| Product Length: | 305 mm |
| Description: | Intel® Z890 LGA 1851 ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management, Advanced AI PC-ready, 22+1+2+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II. |
| Package Type: | Retail |
|---|---|
| Package Weight: | 4.62 kg |
